Corrugated Flexible Metal Hose Pipe, Annular/Corrugated Metal Hose/Bellow/Expansion Joint

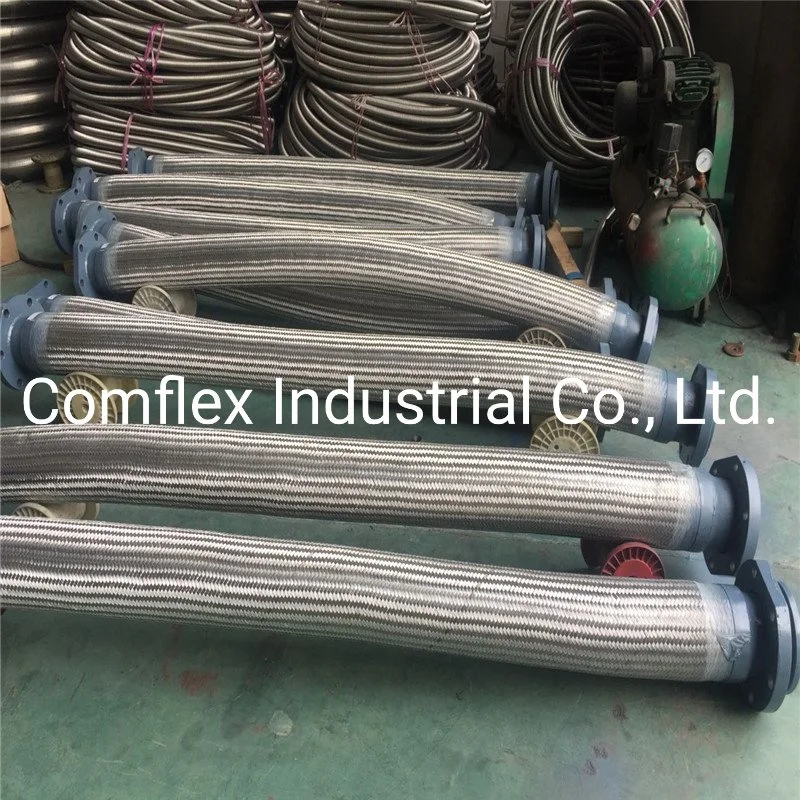

Product pictures:
Product feather
Stainless steel annular formed corrugated flexible metal hose with a single or double layer of sus304 stainless steel wire braid. Or the wire braids can be shipped separately from hoses. It depends on working condition of these metal hoses, such as working pressure, working temperature. Of course, we have all kinds of fittings according customers' requirement.
Specification
Hose material: SUS304,SUS316,SUS316L,SUS321 are available
Braiding material: SUS304
Layer of braiding: one layer or double layer
Product feather
Stainless steel annular formed corrugated flexible metal hose with a single or double layer of sus304 stainless steel wire braid. Or the wire braids can be shipped separately from hoses. It depends on working condition of these metal hoses, such as working pressure, working temperature. Of course, we have all kinds of fittings according customers' requirement.
Specification
Hose material: SUS304,SUS316,SUS316L,SUS321 are available
Braiding material: SUS304
Layer of braiding: one layer or double layer
Inside Diameter (in.) | Number of Braids (#) | Outside Diameter (in.) | Static Min. Bend Radius (in.) | Dynamic Min. Bend Radius (in.) | Maximum Working Pressure (psi) | Burst Pressure (psi) | Weight Per Foot (lbs.) |
1/4 | 0 | 0.41 | 1 | 4.5 | 90 | n/a | 0.04 |
1 | 0.47 | 1800 | 7233 | 0.11 | |||
2 | 0.53 | 2700 | 9100 | 0.18 | |||
3/8 | 0 | 0.65 | 1.2 | 5 | 70 | n/a | 0.1 |
1 | 0.71 | 1558 | 6230 | 0.2 | |||
2 | 0.77 | 2336 | 9345 | 0.3 | |||
1/2 | 0 | 0.77 | 1.5 | 5.5 | 70 | n/a | 0.11 |
1 | 0.83 | 1186 | 4743 | 0.22 | |||
2 | 0.89 | 1779 | 7115 | 0.33 | |||
5/8 | 0 | 0.96 | 1.8 | 7 | 57 | n/a | 0.17 |
1 | 1.02 | 1205 | 4820 | 0.33 | |||
2 | 1.08 | 1808 | 7230 | 0.49 | |||
3/4 | 0 | 1.16 | 2.1 | 8 | 43 | n/a | 0.19 |
1 | 1.22 | 898 | 3591 | 0.37 | |||
2 | 1.28 | 1347 | 5387 | 0.55 | |||
1 | 0 | 1.47 | 2.7 | 9 | 43 | n/a | 0.26 |
1 | 1.53 | 718 | 2872 | 0.5 | |||
2 | 1.59 | 1077 | 4308 | 0.74 | |||
1 1/4 | 0 | 1.75 | 3.1 | 10 | 43 | n/a | 0.29 |
1 | 1.83 | 645 | 2581 | 0.61 | |||
2 | 1.91 | 968 | 3872 | 0.93 | |||
1 1/2 | 0 | 2.08 | 3.9 | 11 | 28 | n/a | 0.47 |
1 | 2.16 | 531 | 2125 | 0.85 | |||
2 | 2.24 | 797 | 3188 | 1.23 | |||
2 | 0 | 2.61 | 5.1 | 13 | 14 | n/a | 0.59 |
1 | 2.69 | 449 | 1797 | 1.11 | |||
2 | 2.77 | 674 | 2696 | 1.63 | |||
2 1/2 | 0 | 3.4 | 6.8 | 16 | 14 | n/a | 0.84 |
1 | 3.5 | 417 | 1669 | 1.64 | |||
2 | 3.6 | 626 | 2504 | 2.44 | |||
3 | 0 | 3.88 | 7.8 | 18 | 14 | n/a | 1.18 |
1 | 3.98 | 346 | 1384 | 2.06 | |||
2 | 4.08 | 519 | 2076 | 2.94 | |||
4 | 0 | 4.96 | 9.8 | 22 | 14 | n/a | 1.41 |
1 | 5.06 | 299 | 1194 | 2.69 | |||
2 | 5.16 | 448 | 1791 | 3.97 | |||
5 | 0 | 6 | 12.8 | 28 | 14 | n/a | 2.18 |
1 | 6.12 | 275 | 1099 | 3.61 | |||
2 | 6.24 | 412 | 1649 | 5.04 | |||
6 | 0 | 7.01 | 14.8 | 32 | 11 | n/a | 2.69 |
1 | 7.13 | 210 | 839 | 4.44 | |||
2 | 7.25 | 315 | 1259 | 6.19 | |||
8 | 0 | 9.04 | 18 | 29 | 3 | 12 | 4.88 |
1 | 9.32 | 250 | 1000 | 8.21 | |||
2 | 9.6 | 360 | 1446 | 11.53 | |||
10 | 0 | 11.34 | 21 | 34 | 4 | 8 | 7.42 |
1 | 11.56 | 175 | 700 | 11.05 | |||
2 | 11.78 | 310 | 1247 | 14.67 | |||
12 | 0 | 13.45 | 27 | 44 | 3 | 8 | 11.04 |
1 | 13.73 | 185 | 745 | 16.71 | |||
2 | 14 | 325 | 1308 | 22.38 |
Standard package:
Company profile:
Comflex Industrial Co.,Ltd
We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine,hydraulic forming machine,wire braiding machine,rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
FAQ
Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose with more than 25 years of experience
Q:What sizes can you make?
A: all sizes from DN12 up to DN350
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customerized our hose according to your requirement
We need to know following information to give you our best quotation for the hoses:
A: Technical drawings
B: Material of the hose :sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D:Length and Diameter
E:Working pressure and temperature of the hose
F: Application of the hose
